Phifer Sheerweave 2390/2360/2410/2500

Phifer Sheerweave Styles 2390, 2360, 2410 and 2500 - Roller Shade fabrics by Phifer

Manufactured with ease of fabrication in mind, Styles 2390, 2360, 2410 and 2500 are also full basketweaves designed expressly for those applications which require a more opaque and nondirectional fabric. Made of vinyl-coated fiberglass yarns, Styles 2390, 2360, 2410 and 2500 are ideal fabrics for use in roll-up shades, Roman shades, vertical blinds and can also be used in exterior roller shades.

Phifer Sheerweave 2390/2360/2410/2500

Phifer SHeerweave Style 2390/2360/2410/2500









Phifer Sheerweave 2390/2360/2410/2500 Specifications



Phifer SheerWeave 2390


Available Widths: 63 " 98" & 126"
Roll Length: 30 Yards
Mesh Weight: 11.9 (oz./sqyd)
Yarn Diameter: (in) .011 Warp, .011 Fill
Fabric Thickness: (in) .017
Openness Factor: Approximately 5%
Uv Blockage: Approximately 95%
Breaking Strength (lb): 250 Warp, 235 Fill
Stiffness (Mg.): 190 Warp, 220 Fill
Composition: 35% Fiberglas, 65% Vinyl on Fiberglass



Phifer SheerWeave 2360

Available Widths: 63 " 98" & 126"
Roll Length: 30 Yards
Mesh Weight: 10.5 (oz./sqyd)
Yarn Diameter: (in) .011 Warp, .011 Fill
Fabric Thickness: (in) .017
Openness Factor: Approximately 10%
Uv Blockage: Approximately 90%
Breaking Strength (lb): 255 Warp, 180 Fill
Stiffness (Mg.): 225 Warp, 180 Fill
Composition: 35% Fiberglas, 65% Vinyl on Fiberglass

Phifer SheerWeave 2410


Available Widths: 63 " 98" & 126"
Roll Length: 30 Yards
Mesh Weight: 13.9 (oz./sqyd)
Yarn Diameter: (in) .011 Warp, .013 Fill
Fabric Thickness: (in) .019
Openness Factor: Approximately 3%
Uv Blockage: Approximately 97%
Breaking Strength (lb): 255 Warp, 325 Fill
Stiffness (Mg.): 212 Warp, 233 Fill
Composition: 35% Fiberglas, 65% Vinyl on Fiberglass



Phifer SheerWeave 2500

Available Widths: 63 " 98" & 126"
Roll Length: 30 Yards
Mesh Weight: 16.1 (oz./sqyd)
Fabric Thickness: (in) .024
Openness Factor: Approximately 1%
Uv Blockage: Approximately 99%
Breaking Strength (lb): 380 Warp, 338 Fill
Stiffness (Mg.): 249 Warp, 224 Fill
Composition: 37% Fiberglas, 65% Vinyl on Fiberglass

Interior Sun Control Fabrics
Standard Colors: See Chart
Standard Widths: 63 " 98" and 126"
Standard Roll Length: 30 Yards

Phifer Sheerweave 2360, 2390, 2410, 2500 are Made in the USA

Fire Classification: M1 (Style 2390), California U.S. Title 19 (small scale), NFPA 701-1999 TM#1 (small scale), NFPA 101 (Class A Rating), UBC (Class I), British Standard 5867.

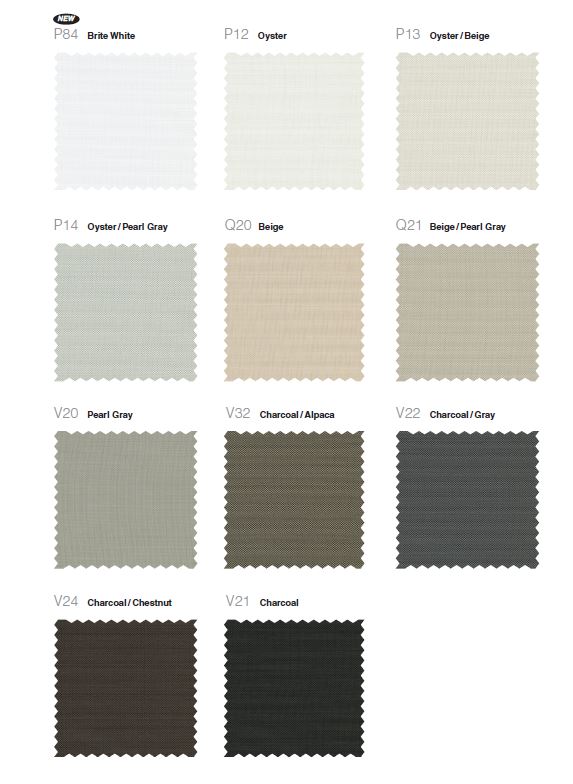

Phifer Sheerweave Styles  2390 Style 2360 Style 2410 and Style 2500 Colors

Phifer Sheerweave 2360/2390/2410/2500 -- Sun Control Fabrics

Phifer Sheerweave 2360 - 90% UV Blockage
63" x 30 Yards Sheerweave 2360
All Colors
Special Order
Call For Pricing
98" x 30 Yards Sheerweave 2360
All Colors
Special Order
126" x 30 Yards Sheerweave 2360
All Colors
Special Order

Phifer Sheerweave 2390 - 95% UV Blockage
63" x 30 Yards Sheerweave 2390
All Colors
Special Order
Call For Pricing
98" x 30 Yards Sheerweave 2390
All Colors
Special Order
126" x 30 Yards Sheerweave 2390
All Colors
Special Order

Phifer Sheerweave 2410 - 97% UV Blockage
63" x 30 Yards Sheerweave 2410
All Colors
Special Order
Call For Pricing
98" x 30 Yards Sheerweave 2410
All Colors
Special Order
126" x 30 Yards Sheerweave 2410
All Colors
Special Order

Phifer Sheerweave 2500 - 99% UV Blockage
63" x 30 Yards Sheerweave 2500
All Colors
Special Order
Call For Pricing
98" x 30 Yards Sheerweave 2500
All Colors
Special Order
126" x 30 Yards Sheerweave 2500
All Colors
Special Order



Results are typical for the product and are for reference purposes only. This data cannot be used as a certification or specification.

Sheerweave 2360/2390/2410/2500 Sample Card
$4.00
