Jig Table Set

Jig Table Set

Professional Jig Table Set Up Kit



Professional Jig Table Set Up Kit



ASSEMBLY INSTRUCTIUONS:

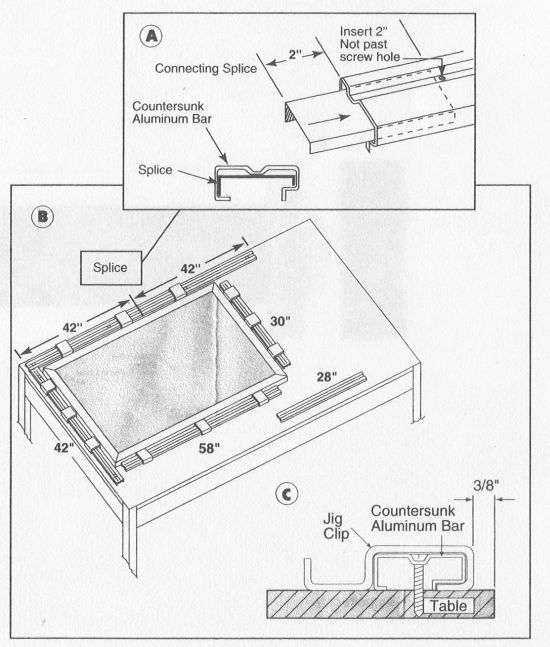

Step 1:

Insert splice as shown in (illustration A), to combine 42" lengths into one 84"

Step 2:

Locate the 84" stationary bar 3/8" in from both the side edge and end of table (see illustrations B and C). Fasten in place using screws provided.

Step 3:

Locate the 42" stationary bar 3/8" in from end of table and butt against the 84" bar (see illustration B).

Step 4:

Using a carpenters, position the 42" bar to form a 90 degreeangle where the two stationary bars meet and secure with screws provided.

Step 5:

Slide clips onto stationary bars from open ends. Clips can be placed over floating bars. Use floating bars that approximate the length and width of the screen frame.

Jig Table Set Up Kit
Jig Table Set Up Kit $126.15



KIT CONTAINS:

3 - Stationary Bars pre-drilled for attachment to table (42")

3 - Floating Bars (28", 30" and 58")

12 - Aluminum Screen Frame Jig Clips (for 3/4" frame)

7 - #8 x 1" Flat head sheet metal screws.

1 - Connecting Splice Bar



Results are typical for the product and are for reference purposes only. This data cannot be used as a certification or specification.



  • Jig_Logo.jpg
    Screen Table Jig Set$126.15

    Complete Table Set
    Includes 12 3/4" Jig Clips
    Qty:
  • Screen_Table_Jig.jpg
    1" Jig Clips - 4 Pack$15.00

    For use with 1" Frame
    Pack of 4
    Qty:
  • Screen_Table_Jig.jpg
    3/4" Jig Clips - 4 Pack$15.00

    For use with 3/4" Frame
    Pack of 4
    Qty:
