Phifer Sheerweave Basic 3% and 5% Fabrics

Phifer Sheerweave Basic

Phifer Sheerweave Basic 3% and 5%



With all the benefits, certifications, and technical specifications you have come to expect, Sheerweave BASIC is uniquely designed for the demanding and competitive commercial market and is an ideal choice for your spec-driven projects. A more robust fiber-glass core yarn gives SheerWeave BASIC the added durability high traffic areas and public spaces require. Suitable for all types of interior window shade applications, SheerWeave BASIC is an economical alternative to traditional solar screen fabrics. BASIC 3% has exceptional sound absorbing performance for an added acoustical benefit. SheerWeave BASIC fabrics can also be used in exterior shading systems.


Technical Information:

Phifer SheerWeave Basic 3%

Widths:
98"
Roll Length: 30 Yards
Mesh Weight: 16.4 oz/yd2
Fabric Thickness: .025
Openness Factor: 3%
Composition: 38% Fiberglass, 62% Vinyl on Fiberglass

Phifer SheerWeave Basic5%

Widths:
98"
Roll Length: 30 Yards
Mesh Weight: 14.1 oz/yd2
Fabric Thickness: .022
Openness Factor: 5%
Composition: 38% Fiberglass, 62% Vinyl on Fiberglass

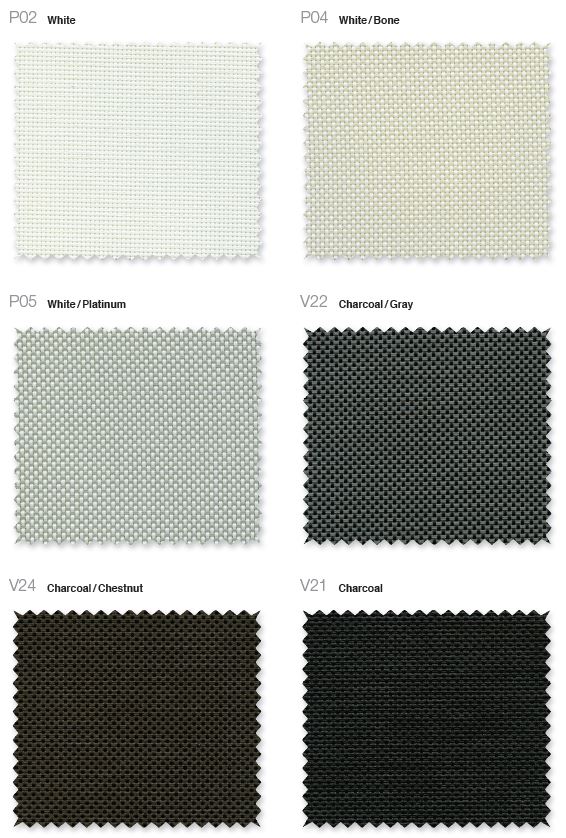

Phifer Sheerweave Basic 3% and 5% Colors



Fire Classification: California US Title 19 (small scale) NFPA 101 (Class A Rating) BS 5867 Part 2 Type B Performance CAN/ULC-S 109 (Large and Small Scale) NFPA 701 TM#1 (small scale) IBC Section 803.1.1 (Class A Rating) NFPA 701 TM#2 (large scale) CAN/CGSB2-4. 162-M80 (Fire Clasifications are subject to change. It is the users responsibility to check for the most current fire ratings. Available upon request)

Warranty Disclaimer: We sell only 1st quality Phifer material. However, Phifers grading criteria allows for various defects within a roll. Roll lengths are not always continuous. Rolls may be up to two pieces per roll to account for specified footage.



Special Order Items:

Phifer Sheerweave is a Special Order Item. Please give us a call for pricing and availability. We can normally have rolls received and shipped within 2-5 business days.
